Survey3W Camera - NIR+Green+Blue (NGB, ENDVI)

(35)
$400.00

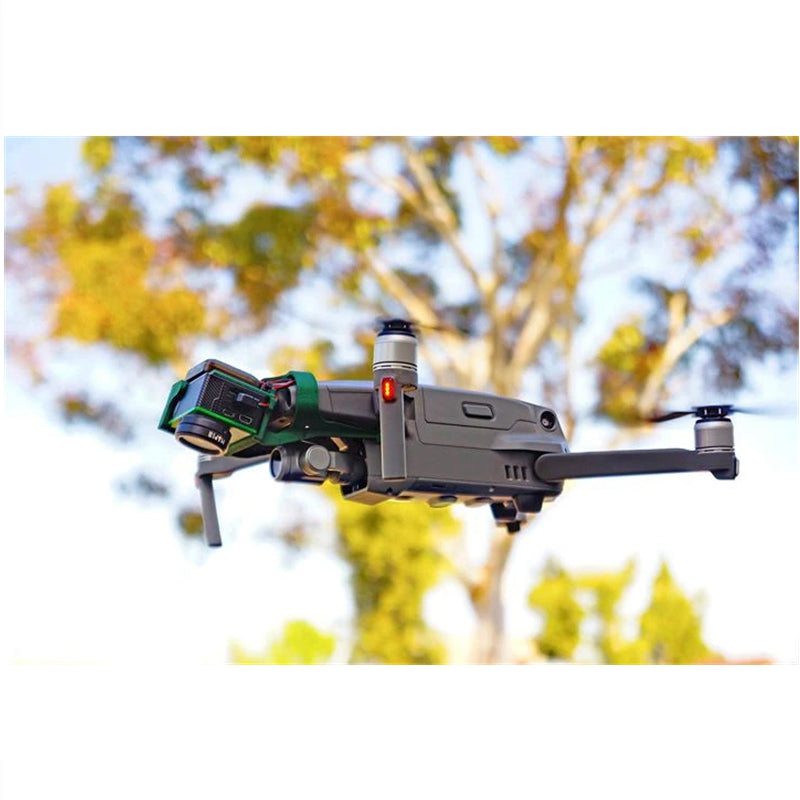

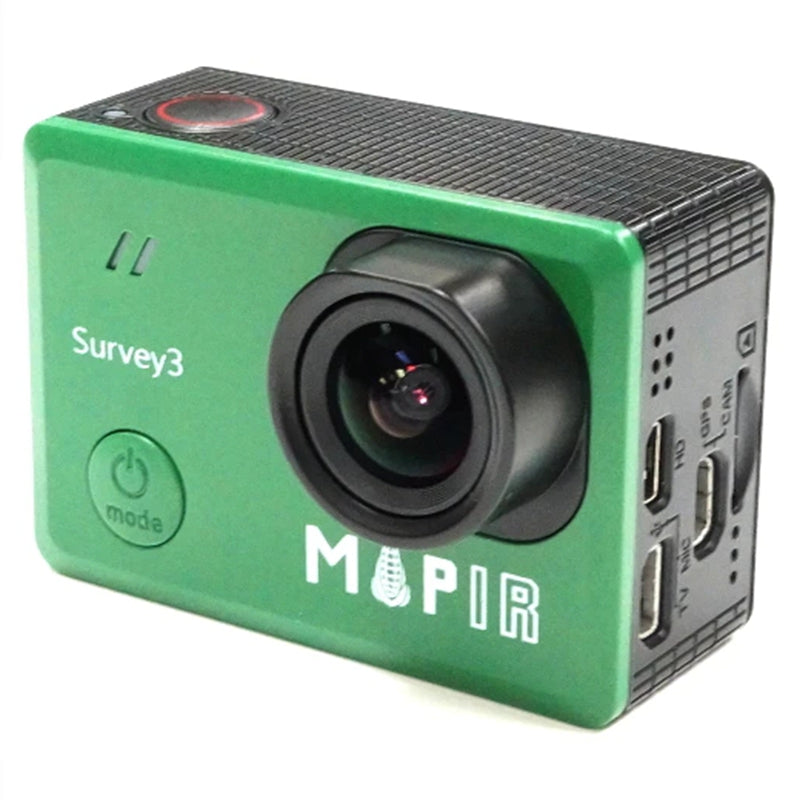

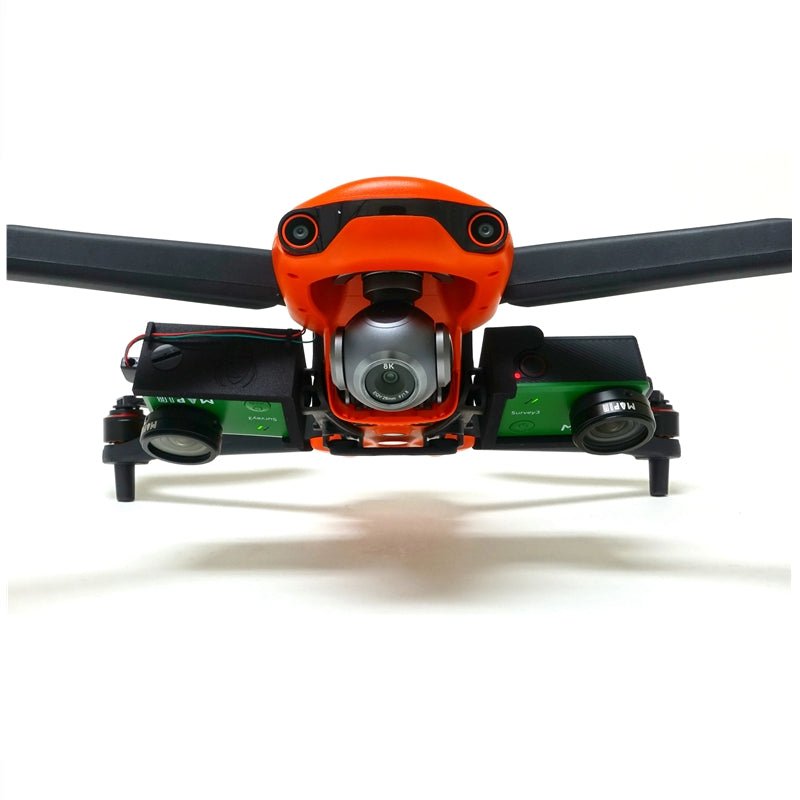

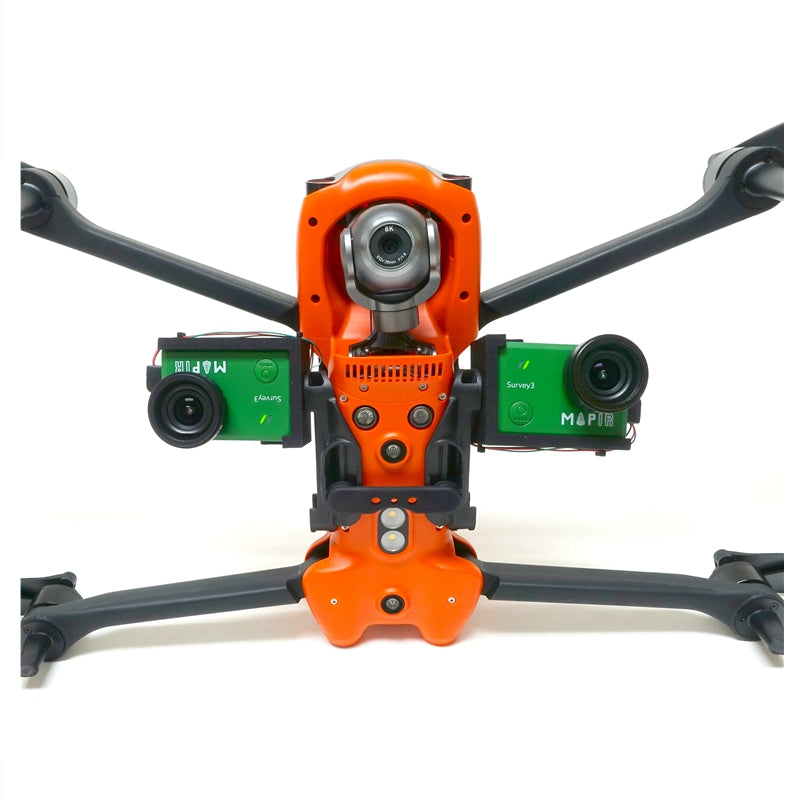

The Survey3 is the newest in our line of simple to use survey cameras. Every Survey3 camera includes an external USB GPS receiver to automatically geo-tag each captured image. Its 12MP sensor and sharp non-fisheye lens allows you to easily capture aerial media. It captures photos on the default timer trigger or can be sent a PWM signal through the HDMI port (see below). If you supply power to the USB port it will power on the camera automatically. Sized similar to a GoPro® Hero these small survey cameras can be attached to your aerial drone platform using our various mounts.

This NIR+Green+Blue (NGB, ENDVI) model sees Near Infrared 850nm, Green 550nm and Blue 475nm light. The images from this camera are commonly calibrated into an index image and then a colored lut is applied to show contrast between healthy and poor health vegetation.

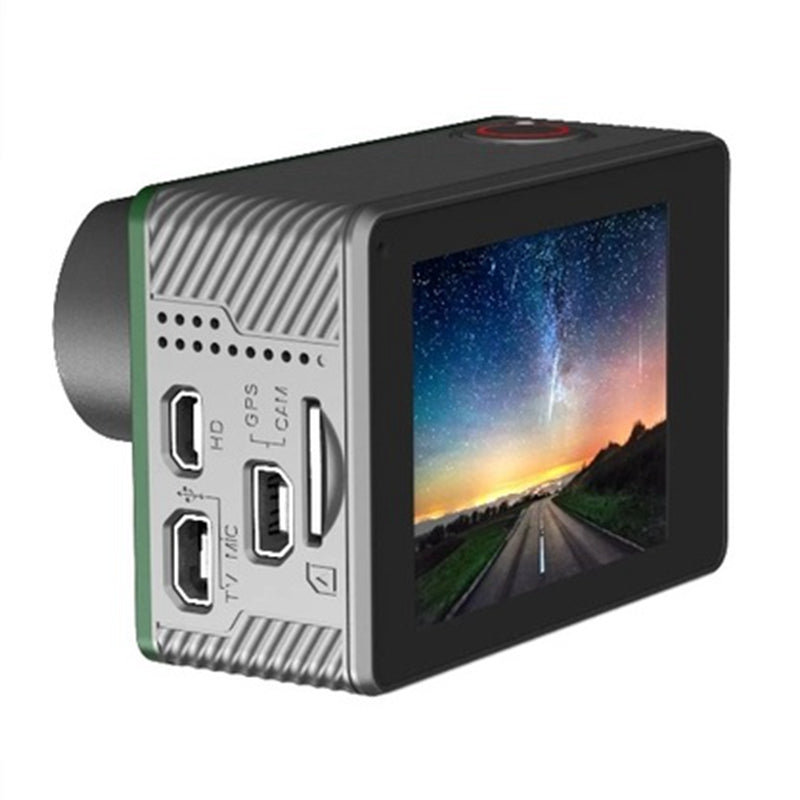

The Survey3 cameras have a faster interval timer: 1.5 seconds for JPG mode and 2.75 seconds for RAW+JPG mode. (Capture speed depends on the speed of the microSD card used). You can also trigger the photo capture using a PWM signal through the HDMI port (see triggering information below). PWM can also be used to mount the camera's memory card to a computer connected via USB.

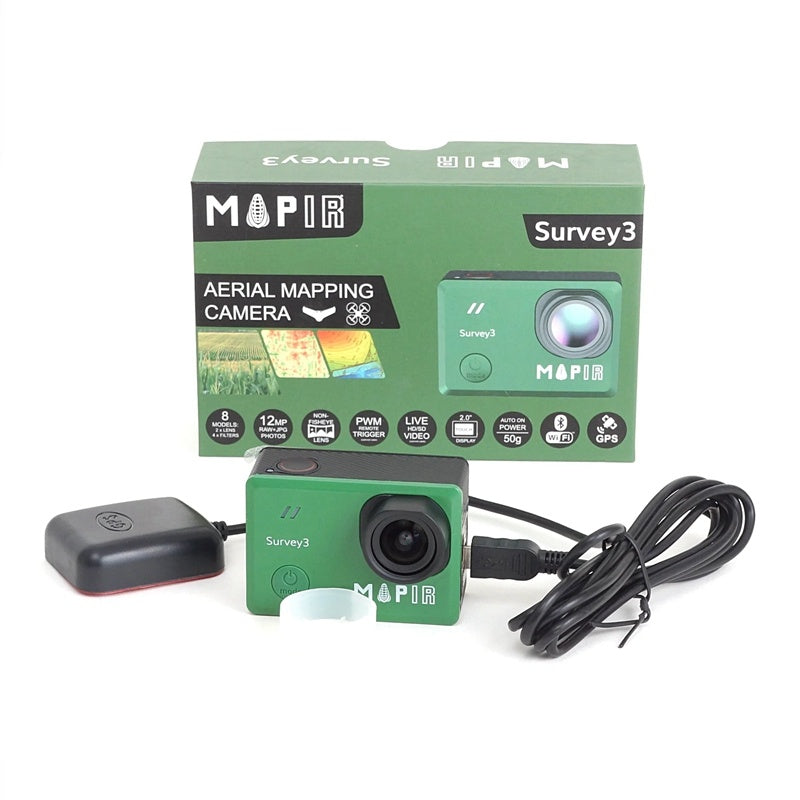

In the Box

  • (1) Survey3 Standard GPS Receiver (we recommend upgrading ABOVE to the Advanced GPS for better results)
  • (1) Survey3 Camera Battery
  • (1) Protective Silicone Lens Cap
  • (1) USB Charging Cable
  • (1) Camera Manual
Camera GPS Version

Flexible credit

Available From Buy Now, Pay Later to our Monthly Payment Plans, we have a range of credit options available.

Returning an item

If you are not completely satisfied with your purchase, please contact our customer service team.

Image Resolution

12 MegaPixel (4,000 x 3,000 px), 8MP

3 Channel

475nm,550nm,850nm

• 12MP sensor captures either RAW+JPG or JPG images • Wide (W) and Narrow (N) non-fisheye lens options available • Ground Resolution: S3W 5.5cm/px, S3N 2.5cm/px (120m AGL) • Works with any drone using our various mounting options • All images are automatically geo-tagged using included GPS • Optional upgraded Advanced GPS receiver available • Triggering options: Interval/Timer and external PWM capture modes • Extract images easily over USB using PWM signal
